CO₂ Dissolution and the Carbonate System

The carbonate system — CO₂(aq) / HCO₃⁻ / CO₃²⁻ — is one of the most important chemical equilibria in natural water chemistry, geochemistry, and environmental science. It controls the pH of rainwater, rivers, oceans, and aquifers, and governs the dissolution and precipitation of carbonate minerals such as calcite and dolomite.

This example shows how to:

Load species from a thermodynamic database and build a ChemicalSystem.
Extract dissociation constants (pKₐ₁, pKₐ₂) directly from standard Gibbs energies.
Simulate CO₂ dissolution in pure water over several orders of magnitude.

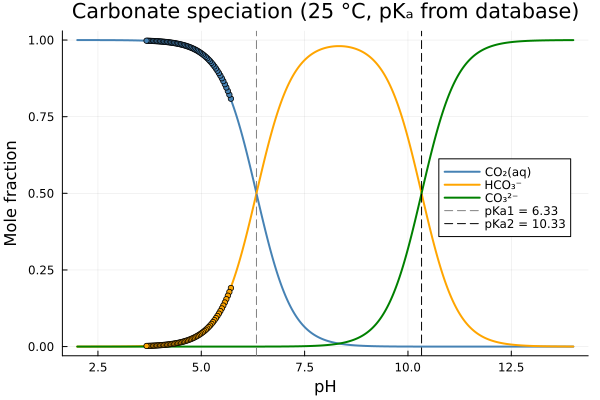

Construct the analytical speciation diagram (fraction of each carbonate species vs pH).

System setup

All species are loaded from the SLOP98 inorganic database. The system contains only H, O, C and charge-bearing species; no other elements are needed.

Symbol	Species	Phase
`H2O@`	H₂O — water	aqueous solvent
`H+`	H⁺ — proton	aqueous solute
`OH-`	OH⁻ — hydroxide	aqueous solute
`CO2@`	CO₂(aq) — dissolved CO₂	aqueous solute
`HCO3-`	HCO₃⁻ — bicarbonate	aqueous solute
`CO3-2`	CO₃²⁻ — carbonate	aqueous solute

The three primary species H2O@, H+, CO3-2 form a basis for the whole system: every other aqueous species is a linear combination of these three.

using ChemistryLab
using DynamicQuantities

substances = build_species("../../../data/slop98-inorganic-thermofun.json")

# Select only the six carbonate-system species
dict = Dict(symbol(s) => s for s in substances)
species = [dict[sym] for sym in split("H2O@ H+ OH- CO2@ HCO3- CO3-2")]

cs = ChemicalSystem(species, ["H2O@", "H+", "CO3-2"])

6-element ChemicalSystem{Species{Int64}, AbstractReaction, StoichMatrix{Int64, Symbol, Vector{Symbol}, Matrix{Int64}, Species{Int64}}, StoichMatrix{Int64, Species{Int64}, Vector{Species{Int64}}, Matrix{Int64}, Species{Int64}}}:
 H2O@ {Water HGK} [H2O@ ◆ H₂O@]
 H+ {H+} [H+ ◆ H⁺]
 OH- {OH- hydroXyl ion} [OH- ◆ OH⁻]
 CO2@ {CO2,aq (+ H2O = H2CO3,aq )} [CO2@ ◆ CO₂@]
 HCO3- {HCO3- bicarbonate ion} [HCO3- ◆ HCO₃⁻]
 CO3-2 {CO3-2 carbonate ion} [CO3-2 ◆ CO₃²⁻]

Larger carbonate systems

If calcium is relevant (e.g. hard water, calcite dissolution), add Ca+2 and its complexes to the species list and extend the primaries to ["H2O@", "H+", "CO3-2", "Ca+2"]. The SLOP98 inorganic database also contains Ca(HCO3)+ and Ca(CO3)@.

Dissociation constants from thermodynamic data

The two acid–base equilibria of the carbonate system are:

\[\text{CO}_2(\text{aq}) + \text{H}_2\text{O} \rightleftharpoons \text{H}^+ + \text{HCO}_3^- \qquad \text{pK}_{a1} \approx 6.35\]

\[\text{HCO}_3^- \rightleftharpoons \text{H}^+ + \text{CO}_3^{2-} \qquad \text{pK}_{a2} \approx 10.33\]

Both constants are computed from standard Gibbs energies of formation at 25 °C, exactly as in the acetic acid titration example:

R  = ustrip(Constants.R)
T  = 298.15   # K
RT = R * T

sp = Dict(symbol(s) => s for s in cs.species)

# pKa1 : CO₂(aq) + H2O ⇌  HCO₃⁻ + H⁺
Ka1  = exp(-(sp["HCO3-"].ΔₐG⁰(T = T) + sp["H+"].ΔₐG⁰(T = T) - sp["H2O@"].ΔₐG⁰(T = T) - sp["CO2@"].ΔₐG⁰(T = T)) / RT)
pKa1 = -log10(Ka1)

# pKa2 : HCO₃⁻ ⇌ H⁺ + CO₃²⁻
Ka2  = exp(-(sp["CO3-2"].ΔₐG⁰(T = T) + sp["H+"].ΔₐG⁰(T = T) - sp["HCO3-"].ΔₐG⁰(T = T)) / RT)
pKa2 = -log10(Ka2)

# pKw : H₂O ⇌ H⁺ + OH⁻
Kw   = exp(-(sp["H+"].ΔₐG⁰(T = T) + sp["OH-"].ΔₐG⁰(T = T) - sp["H2O@"].ΔₐG⁰(T = T)) / RT)
pKw  = -log10(Kw)

println("pKa1 (CO₂(aq) / HCO₃⁻) = ", round(pKa1, digits = 2), "   (lit. 6.35)")
println("pKa2 (HCO₃⁻  / CO₃²⁻)  = ", round(pKa2, digits = 2), "   (lit. 10.33)")
println("pKw  (H₂O    / H⁺+OH⁻) = ", round(pKw,  digits = 2), "   (lit. 14.00)")

pKa1 (CO₂(aq) / HCO₃⁻) = 6.34   (lit. 6.35)
pKa2 (HCO₃⁻  / CO₃²⁻)  = 10.33   (lit. 10.33)
pKw  (H₂O    / H⁺+OH⁻) = 14.0   (lit. 14.00)

Building the equilibrium solver

A single EquilibriumSolver is compiled once and reused for every point of the scan:

using OptimizationIpopt

solver = EquilibriumSolver(
    cs,
    DiluteSolutionModel(),
    IpoptOptimizer(
        acceptable_tol        = 1e-10,
        dual_inf_tol          = 1e-10,
        acceptable_iter       = 1000,
        constr_viol_tol       = 1e-10,
        warm_start_init_point = "no",
    );
    variable_space = Val(:linear),
    abstol  = 1e-8,
    reltol  = 1e-8,
)

EquilibriumSolver{ChemistryLab.var"#μ#build_potentials##0"{ChemistryLab.var"#lna#activity_model##0"{Float64, Vector{Int64}, Vector{Int64}, Int64}}, OptimizationIpopt.IpoptOptimizer, Val{:linear}}(ChemistryLab.var"#μ#build_potentials##0"{ChemistryLab.var"#lna#activity_model##0"{Float64, Vector{Int64}, Vector{Int64}, Int64}}(ChemistryLab.var"#lna#activity_model##0"{Float64, Vector{Int64}, Vector{Int64}, Int64}(4.016550535127659, Int64[], [2, 3, 4, 5, 6], 1)), OptimizationIpopt.IpoptOptimizer(1.0e-10, 1000, 1.0e-10, 1.0e-10, 0.0001, "no", "no", "mumps", "none", "", "", "yes", "gradient-based", 100.0, "no", "no", "monotone", "quality-function", 0.1, "obj-constr-filter", "no", "exact", 6, "bfgs", "no", "filter", "no", Dict{String, Any}()), Val{:linear}(), Base.Pairs(:abstol => 1.0e-8, :reltol => 1.0e-8))

CO₂ dissolution scan

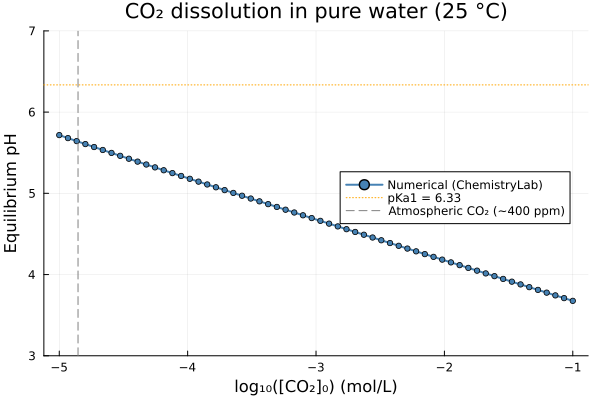

The experiment: 1 kg of pure water receives an increasing amount of dissolved CO₂ (CO₂(aq)), from trace atmospheric levels (~10⁻⁵ mol) up to a highly carbonated solution (~0.1 mol). Three representative concentrations illustrate the pH trend:

s = ChemicalState(cs)
for (n_CO2, label) in [
    (1e-5, "atmospheric, ~400 ppm"),
    (1e-3, "lightly carbonated"),
    (1e-1, "strongly carbonated"),
]
    set_quantity!(s, "H2O@", 1.0u"kg")
    set_quantity!(s, "CO2@", n_CO2 * u"mol")
    V_liq = volume(s).liquid
    set_quantity!(s, "H+",  1e-7u"mol/L" * V_liq)
    set_quantity!(s, "OH-", 1e-7u"mol/L" * V_liq)
    s_eq = solve(solver, s)
    println("pH at [CO₂]₀ = ", n_CO2, " mol (", label, ") : ",
            round(pH(s_eq), digits = 2))
end
