Titration of Acetic Acid by NaOH

This example simulates the potentiometric titration of acetic acid (CH₃COOH, a monoprotic weak acid) by sodium hydroxide (NaOH, a strong base), both at 0.1 M. The dissociation constant pKₐ is computed directly from the thermodynamic database, and the numerical titration curve is compared against the analytical Henderson–Hasselbalch approximation.

System setup

Species are loaded from two SLOP98 databases: the inorganic database provides H₂O, H⁺, OH⁻, NaOH and Na⁺; the organic database provides acetic acid and acetate.

The primaries H2O@, H+, Ace-, Na+ form a basis for the system. Every other species is expressed as a linear combination of these four.

using ChemistryLab
using DynamicQuantities

substances_inorg = build_species("../../../data/slop98-inorganic-thermofun.json")
substances_org   = build_species("../../../data/slop98-organic-thermofun.json")

dict_all_species = merge(
    Dict(symbol(s) => s for s in substances_inorg),
    Dict(symbol(s) => s for s in substances_org),
)
species = [dict_all_species[s] for s in split("H2O@ Na+ NaOH@ H+ OH- AceH@ Ace-")]

cs = ChemicalSystem(species, ["H2O@", "H+", "Ace-", "Na+"])
# pprint(cs.SM) #  for pretty-printing the stoichiometric matrix

aq_species  = speciation(substances_inorg, split("H2O@ Na+ NaOH@ H+ OH-"); aggregate_state=[AS_AQUEOUS])
ace_species = speciation(substances_org, split("AceH@ Ace-"); aggregate_state=[AS_AQUEOUS])
species     = unique(s -> symbol(s), vcat(aq_species, ace_species))

Dissociation constant from thermodynamic data

The pKₐ is derived from the standard Gibbs energies of the dissociation reaction CH₃COOH ⇌ CH₃COO⁻ + H⁺:

R  = Constants.R
T  = 25ua"degC" # equivalent to 298.15u"K"
RT = R * T

sp = Dict(symbol(s) => s for s in cs.species)

Ka  = exp(-(sp["Ace-"].ΔₐG⁰(T=T, unit=true) + sp["H+"].ΔₐG⁰(T=T, unit=true) - sp["AceH@"].ΔₐG⁰(T=T, unit=true)) / RT)
pKa = -log10(Ka)
println("Ka  = ", Ka)
println("pKa = ", round(pKa, digits = 2))

Ka  = 1.7492331830860476e-5
pKa = 4.76

Build the EquilibriumSolver once — it is reused for each titration point:

using OptimizationIpopt

solver = EquilibriumSolver(
    cs,
    DiluteSolutionModel(),
    IpoptOptimizer(
        acceptable_tol        = 1e-10,
        dual_inf_tol          = 1e-10,
        acceptable_iter       = 1000,
        constr_viol_tol       = 1e-10,
        warm_start_init_point = "no",
    );
    variable_space = Val(:linear),
    abstol  = 1e-10,
    reltol  = 1e-10,
)

Running the titration

The base is introduced as NaOH@ (the undissociated form); the solver distributes it at equilibrium between NaOH@, Na+ and OH- according to the stoichiometric constraints.

ca  = 0.1      # acetic acid concentration, mol/L
Va  = 0.1      # volume of acid solution, L
cb  = 0.1      # NaOH concentration, mol/L
nAH = ca * Va  # total moles of CH₃COOH = 10 mmol

Vbeq = nAH / cb   # equivalence volume, L
V_eq = Vbeq * 1e3  # equivalence volume, mL

ρ_water = 1.   # kg/L

volumes_NaOH = range(0, 2 * V_eq; length = 100)   # mL
pH_vals = Float64[]

s = ChemicalState(cs)
for V_mL in volumes_NaOH
    Vb      = V_mL * 1e-3      # L
    n_NaOH  = cb * Vb           # mol of NaOH added
    V_total = Va + Vb           # total volume, L

    set_quantity!(s, "AceH@", nAH    * u"mol")
    set_quantity!(s, "NaOH@", n_NaOH * u"mol")
    set_quantity!(s, "H2O@",  ρ_water * V_total * u"kg")

    V_liq = volume(s).liquid
    set_quantity!(s, "H+",  1e-7u"mol/L" * V_liq)   # pH-neutral seed
    set_quantity!(s, "OH-", 1e-7u"mol/L" * V_liq)

    s_eq = solve(solver, s)
    push!(pH_vals, pH(s_eq))
end

idx_heq = argmin(abs.(collect(volumes_NaOH) .- V_eq / 2))
idx_eq  = argmin(abs.(collect(volumes_NaOH) .- V_eq))

println("pH at V =   0 mL  (pure acid)         : ", round(pH_vals[begin],   digits = 2))
println("pH at V =  50 mL  (½ PE, ≈ pKₐ)      : ", round(pH_vals[idx_heq], digits = 2))
println("pH at V = 100 mL  (equivalence point) : ", round(pH_vals[idx_eq],   digits = 2))
println("pH at V = 200 mL  (excess NaOH)       : ", round(pH_vals[end],      digits = 2))

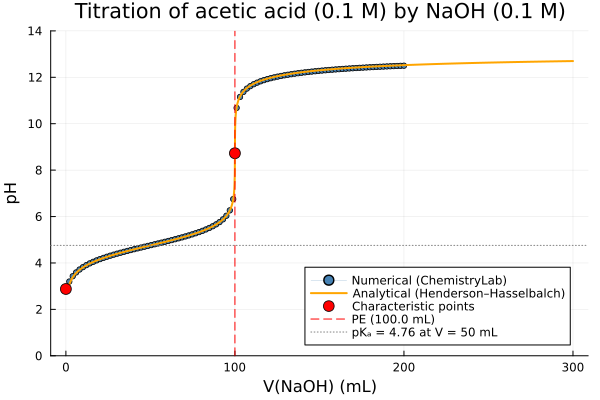

Titration curve

The numerical result is compared against the analytical approximation. In the buffer zone (before the equivalence point), the Henderson–Hasselbalch equation applies; beyond the equivalence point, the pH is controlled by the excess NaOH concentration.

using Plots

function ana_pH(Vb_mL)
    Vb = Vb_mL * 1e-3
    Vb ≈ 0 && return (-log10(ca) + pKa) / 2   # pure acid approximation
    return Vb < Vbeq ?
        pKa + log10(cb * Vb / (nAH - cb * Vb)) :
        14  + log10((cb * Vb - nAH) / (Va + Vb))
end

pH0  = (-log10(ca) + pKa) / 2
pHeq = (pKa + 14 + log10(ca * Va / (Va + Vbeq))) / 2

p = plot(
    collect(volumes_NaOH), pH_vals;
    xlabel     = "V(NaOH) (mL)",
    ylabel     = "pH",
    label      = "Numerical (ChemistryLab)",
    linewidth  = 0,
    marker     = :circle,
    markersize = 3,
    color      = :steelblue,
    title      = "Titration of acetic acid (0.1 M) by NaOH (0.1 M)",
    ylims      = (0, 14),
    legend     = :bottomright,
)
lVb = range(0.01 * V_eq, 3 * V_eq; length = 10_000)
plot!(p, lVb, ana_pH.(lVb);
    label     = "Analytical (Henderson–Hasselbalch)",
    linewidth = 2,
    color     = :orange,
)
scatter!(p, [0, V_eq], [pH0, pHeq];
    label      = "Characteristic points",
    color      = :red,
    markersize = 6,
)
vline!(p, [V_eq]; linestyle = :dash, color = :red,  label = "PE ($(round(V_eq, digits=1)) mL)")
hline!(p, [pKa];  linestyle = :dot,  color = :grey, label = "pKₐ = $(round(pKa, digits=2)) at V = 50 mL")
