11  Representative Volume Element

Important Objectives

This tutorial shows how to build a Representative Volume Element (RVE) in Echoes by assembling phases (ellipsoidal inclusions, n-layer spheres) with their volume fractions and properties.

import numpy as np
from echoes import *
import math

np.set_printoptions(precision=8, suppress=True)

Construction of a rve

In Echoes a rve object inherits from the Python dict (dictionary) with string keys and phase values. A phase is either an ellipsoid (see Section 7.2), a sphere_nlayers (see Section 8.2), or a crack (see Chapter 9).

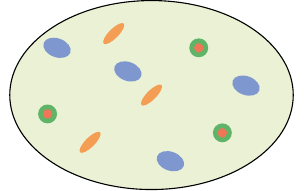

Fig. 11.1: Representative Volume Element

A rve is defined with optional keyword-arguments:

myrve = rve(matrix=phasename, prop={"C": C, ...})

where phasename is a string referring to the name of one of the phases and the prop argument is a dictionary of tensors indexed by property names. The matrix keyword designates:

  • the phase playing the role of the matrix in matrix/inclusion schemes (e.g. Mori-Tanaka),
  • the phase used to initialize the fixed-point algorithm in the self-consistent scheme (unless prop is provided, in which case that property is used as initial value).

Defining phases

The rve is completed by defining phases:

myrve["PHASE1"] = ellipsoid(shape=..., prop=..., fraction=f1, symmetrize=[ISO])
myrve["PHASE2"] = ellipsoid(shape=..., prop=..., fraction=f2)
myrve["PHASE3"] = sphere_nlayers(..., fraction=f3)
myrve["CRACK"]  = crack(shape=spheroidal(ω), density=ε, prop={"C": tZ4})
NoteNotes
  • If the matrix keyword was not used in the definition of the rve, the first phase plays the role of the matrix by default if necessary.
  • The fraction keyword denotes the volume fraction within the rve. The sum of all fractions should be equal to 1. If it is not the case, the volume fraction of the matrix is adjusted.
  • The symmetrize=[ISO] argument “isotropifies” the directions of the ellipsoid: although the ellipsoid is defined with a specified direction, the phase is considered to represent an isotropic distribution of orientations. This argument should be used only if the reference medium of the homogenization scheme is itself isotropic.
  • For crack phases the fraction keyword is not used. Instead, the Budiansky–O’Connell crack density \(\varepsilon = n\,a^3\) (see Chapter 9) is set via the density keyword. The volume fraction of a crack family vanishes as the aspect ratio \(\omega \to 0\), so density is the relevant parameter.

Modifying phases

Each phase can be modified after construction:

myrve["PHASE1"].fraction = ...
myrve["PHASE1"].shape = ...
myrve["PHASE1"].set_prop("C", C)
myrve["PHASE1"].symmetrize(ISO)
myrve["PHASE1"].set_param_eshelby(algo=NUMINT, epsroots=1.e-4,
                                   epsabs=1.e-4, epsrel=1.e-4, maxnb=100000)
TipTip

set_param_eshelby can also be applied at the level of the rve: myrve.set_param_eshelby(...). In this case the parameters apply to all ellipsoidal phases.

\(\,\)
